Screw Piling Services Sydney
A Access Piling & Rock Drilling has been delivering expert screw piling services in Sydney, NSW, and across Australia since 1988. With over 30 years of experience, qualified operators, and a record of 'AA' grade pile construction, we bring proven capability to residential, commercial, and infrastructure projects throughout Greater Sydney. Contact our team today for a free quote by calling 0418 353 238.
What Are Screw Piles and How Do They Work?

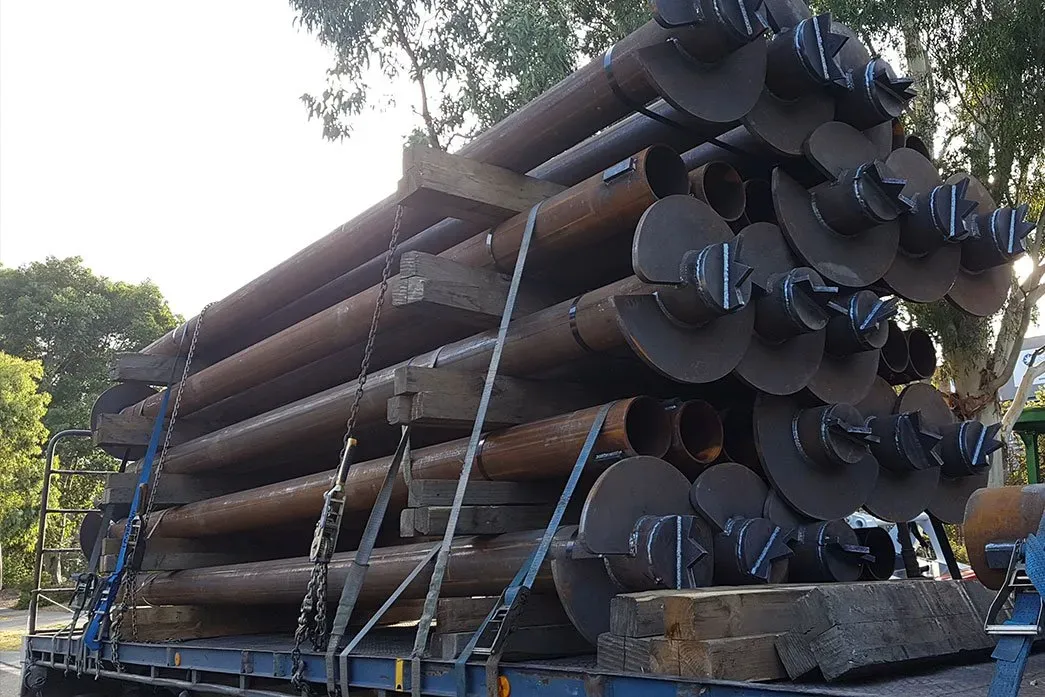

Screw piles are a deep foundation system that delivers strong, reliable load transfer with minimal site disruption. Each pile is a hollow steel tubular section fitted with one or more helical flights. A hydraulic drive head rotates the pile into the ground, much like a screw into timber. Because no spoil is excavated and no concrete pour is required, the process is cleaner, quieter, and faster than traditional bored pier methods.
Our screw piles are Australian-made with a closed end, preventing soil from filling the centre during installation. This allows building inspectors to accurately measure final embedment depth and verify load capacity.
Are Screw Piles Suitable for Sydney's Soil Conditions?
Screw piles perform well across many soil types found throughout Greater Sydney. Sydney's western suburbs -- including Parramatta, Blacktown, and Penrith -- often feature reactive clay soils that expand and contract with moisture changes, which can compromise shallow footings over time. Screw piles bypass the reactive zone by transferring structural loads to stable strata at depth, reducing the risk of movement or settlement.
Coastal and sandstone-based zones present different challenges, including variable fill layers and localised rock. Our team assesses each site's geotechnical conditions before recommending a pile specification, ensuring the solution is matched to the actual ground profile.
Screw Piling Services in Sydney for Residential, Commercial, and Infrastructure Projects
Our screw piling services suit a wide range of project types and scales. We have successfully installed piles up to 1,200 kN capacity across both small residential sites and large commercial developments. Common applications include residential extensions, decks, and outbuildings; granny flat and secondary dwelling foundations; commercial and light industrial structures with tight programme deadlines; telecommunications towers, transmission lines, and signage structures; retaining walls, walkways, and bridge abutments; and infrastructure projects in Western Sydney where reactive soils or loose fill are present.
Compliance, Engineering, and AS 2159 Standards
All screw pile installations must comply with AS 2159 -- Piling Design and Installation, the primary Australian Standard governing piling design, construction, and testing. Compliance is a legal requirement referenced in the Building Code of Australia. Our team monitors and records torque values throughout each installation. Engineering certification is available on request, and our operators hold current qualifications and insurance. This documentation supports your building certifier's sign-off and reduces delays at inspection stage.
How Does the Screw Pile Installation Process Work?
The process is straightforward and can often be completed within a single day for smaller residential jobs.
1. Site assessment and geotechnical review: We review site conditions, your engineer's drawings, and available soil investigation data to confirm pile sizing, spacing, and target depth.
2. Pile specification and mobilisation: We select the appropriate shaft diameter, helix configuration, and pile length for your load requirements, then mobilise the right machine for your site access constraints.

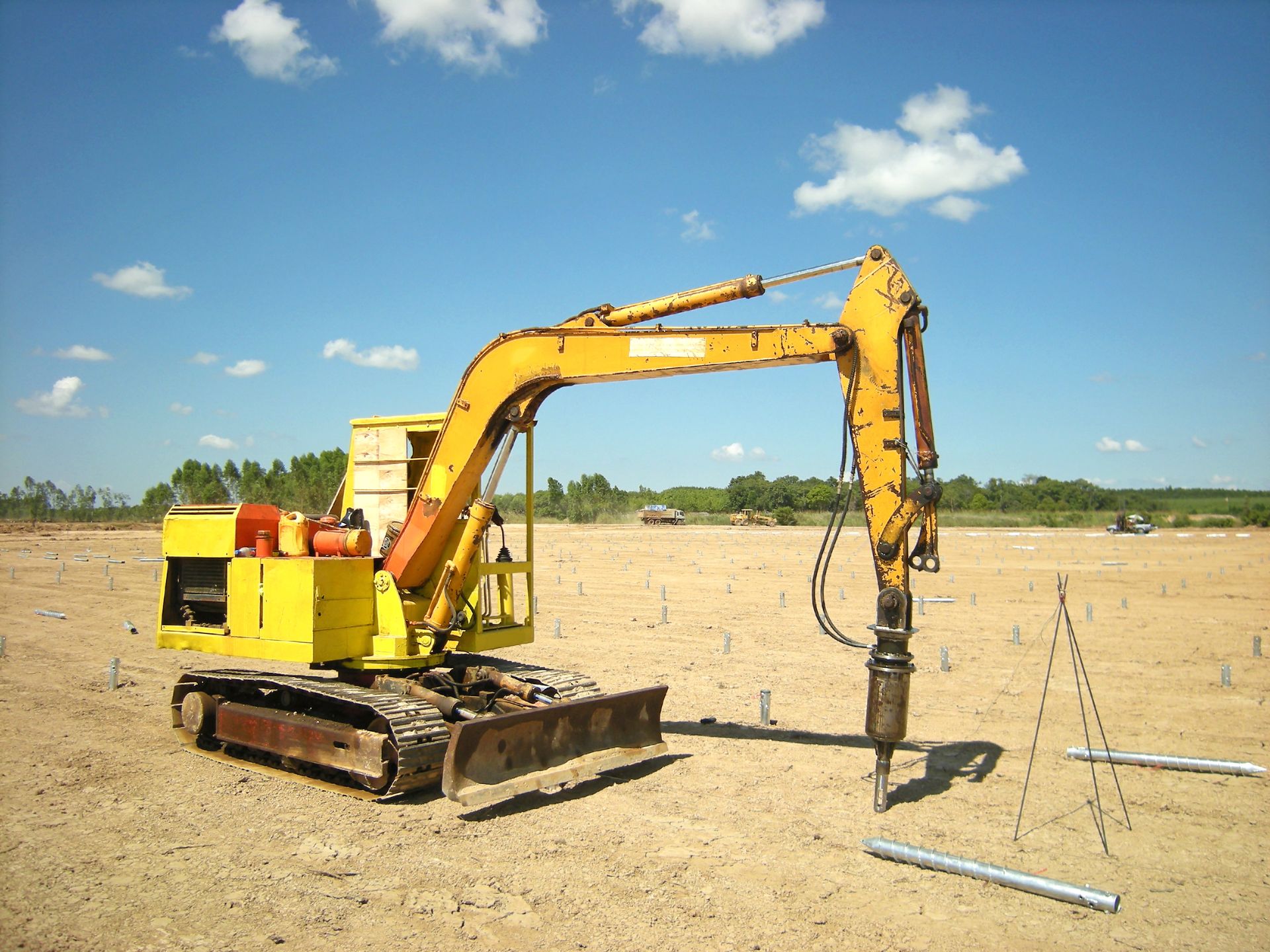

3. Pile installation and torque monitoring: Each pile is rotated into the ground using a hydraulic drive head, with torque monitored continuously to confirm the pile reaches competent bearing strata.
4. Installation recording: Final embedment depth and torque readings are recorded for each pile, providing the compliance documentation your engineer and certifier require.
5. Bracketing and handover: Pile caps or structural brackets are fitted to accept your steel or timber frame, and the site is left ready for the next trade.
Frequently Asked Questions
What Are Screw Piles Used For?
Screw piles create deep, stable foundations for residential extensions, decks, granny flats, retaining walls, telecommunications towers, and commercial buildings where speed and low soil disturbance are priorities.
How Long Does Screw Pile Installation Take?
Smaller residential jobs can often be completed within a single day. Larger commercial or infrastructure projects may take several days depending on pile numbers and site conditions.
Do Screw Piles Meet Australian Building Standards?
Yes. Installations must comply with AS 2159 and the Building Code of Australia. We provide engineering certification and installation records to support your building approval.
Are Screw Piles Suitable for Reactive Clay Soils in Western Sydney?
Yes. Screw piles are particularly effective in reactive clay soils common around Penrith, Blacktown, and Parramatta. By penetrating through the reactive layer to stable strata below, they reduce the risk of foundation movement from soil shrink-swell behaviour.
How Do I Get a Quote for Screw Piling Services in Sydney?
Call 0418 353 238 or use our online contact form. Our team can review your site conditions and structural requirements before providing a recommendation.
Get a Quote for Screw Piling Services in Sydney
A Access Piling & Rock Drilling is ready to assist with your foundation project across Greater Sydney, NSW. Whether you are a builder, engineer, or homeowner, we are equipped to support projects of all sizes. Call 0418 353 238 today or reach out online to request your free quote.
